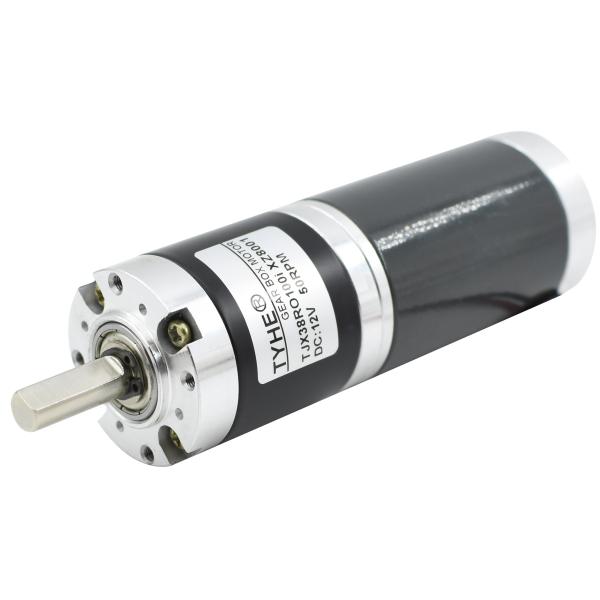

OEM ODM D38mm Small DC Planetary Gear Motor 40kg.Cm 200Rpm

Brand Name : TYHE

Model Number : TJX38RO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 38mm diameter

Voltage : 12v 24v or customized

Speed : 1-1600rpm Customized

Torque : 8N.m

Gear material : Steel gears

Commutation : brushed

Type : DC Planetary Gear Motor, Small Motor

Keywords : Small Size D38mm 12 Voltios 40kg.Cm Torque 200 Rpm Dc Planetary Gear Motor With Brake

Contact Now

Products Description

Small Size D38mm 12 Voltios 40kg.Cm Torque 200 Rpm Dc Planetary Gear Motor With Brake

2D drawing

OEM ODM D38mm Small DC Planetary Gear Motor 40kg.Cm 200Rpm


OEM ODM D38mm Small DC Planetary Gear Motor 40kg.Cm 200Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 24 3200 80 2560 0.25 14.30 3.83 63.89 42.90 1.30
ZY3864 24 4000 120 3200 0.40 17.90 6.00 62.48 53.70 2.20
ZY3864 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3200RPM Input 24V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 691.9 3.45 47.62 142.86 864.9 5.40 59.61 178.82
28.2 90 5.2 492.3 3.45 66.92 200.77 615.4 5.40 83.77 251.32
37 81 13.7 186.9 3.10 158.69 476.06 233.6 4.86 198.64 595.91
37 81 19.2 133.3 3.10 222.39 667.18 166.7 4.86 278.38 835.14
37 81 26.9 95.2 3.10 311.58 934.75 119.0 4.86 390.02 1170.07
37 81 35.0 73.1 3.10 405.41 1216.22 91.4 4.86 507.47 1522.40
45.8 73 51.0 50.2 2.80 532.39 1597.17 62.7 4.38 666.42 1999.25
45.8 73 71.0 36.1 2.80 741.17 2223.51 45.1 4.38 927.76 2783.27
45.8 73 100.0 25.6 2.80 1043.90 3131.70 32.0 4.38 1306.70 3920.10
45.8 73 139.0 18.4 2.80 1451.02 4353.06 23.0 4.38 1816.31 5448.94
54.7 65.6 189.0 13.5 2.51 1772.97 5318.91 16.9 3.93 2219.31 6657.94
54.7 65.6 264.0 9.7 2.51 2476.53 7429.59 12.1 3.93 3099.99 9299.98
54.7 65.6 369.0 6.9 2.51 3461.52 10384.55 8.7 3.93 4332.95 12998.84
54.7 65.6 514.0 5.0 2.51 4821.73 14465.19 6.2 3.93 6035.59 15000.00
54.7 65.6 721.0 3.6 2.51 6763.56 15000.00 4.4 3.93 8466.27 15000.00
64 59 699.0 3.7 2.26 5897.46 15000.00 4.6 3.54 7382.14 15000.00
64 59 977.0 2.6 2.26 8242.95 15000.00 3.3 3.54 10318.10 15000.00
64 59 1367.0 1.9 2.26 11533.38 15000.00 2.3 3.54 14436.89 15000.00
64 59 1911.0 1.3 2.26 15000.00 15000.00 1.7 3.54 15000.00 15000.00
64 59 2672.0 1.0 2.26 15000.00 15000.00 1.2 3.54 15000.00 15000.00
64 59 3736.0 0.7 2.26 15000.00 15000.00 0.9 3.54 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-4500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 973.0 6.17 60.61 181.82 1081.1 7.35 64.94 194.81
28.2 90 5.2 692.3 6.17 85.18 255.53 769.2 7.35 91.26 273.78
37 81 13.7 262.8 5.56 201.97 605.90 292.0 6.62 216.39 649.17
37 81 19.2 187.5 5.56 283.05 849.14 208.3 6.62 303.26 909.79
37 81 26.9 133.8 5.56 396.56 1189.68 148.7 6.62 424.89 1274.66
37 81 35.0 102.9 5.56 515.97 1547.91 114.3 6.62 552.83 1658.48
45.8 73 51.0 70.6 5.01 677.59 2032.76 78.4 5.96 725.99 2177.96
45.8 73 71.0 50.7 5.01 943.31 2829.92 56.3 5.96 1010.69 3032.06
45.8 73 100.0 36.0 5.01 1328.60 3985.80 40.0 5.96 1423.50 4270.50
45.8 73 139.0 25.9 5.01 1846.75 5540.26 28.8 5.96 1978.67 5936.00
54.7 65.6 189.0 19.0 4.50 2256.51 6769.53 21.2 5.36 2417.69 7253.06
54.7 65.6 264.0 13.6 4.50 3151.95 9455.85 15.2 5.36 3377.09 10131.26
54.7 65.6 369.0 9.8 4.50 4405.56 13216.69 10.8 5.36 4720.25 14160.74
54.7 65.6 514.0 7.0 4.50 6136.75 15000.00 7.8 5.36 6575.09 15000.00
54.7 65.6 721.0 5.0 4.50 8608.16 15000.00 5.5 5.36 9223.03 15000.00
64 59 699.0 5.2 4.05 7505.86 15000.00 5.7 4.82 8042.00 15000.00
64 59 977.0 3.7 4.05 10491.03 15000.00 4.1 4.82 11240.39 15000.00
64 59 1367.0 2.6 4.05 14678.85 15000.00 2.9 4.82 15000.00 15000.00
64 59 1911.0 1.9 4.05 15000.00 15000.00 2.1 4.82 15000.00 15000.00
64 59 2672.0 1.3 4.05 15000.00 15000.00 1.5 4.82 15000.00 15000.00
64 59 3736.0 1.0 4.05 15000.00 15000.00 1.1 4.82 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.
